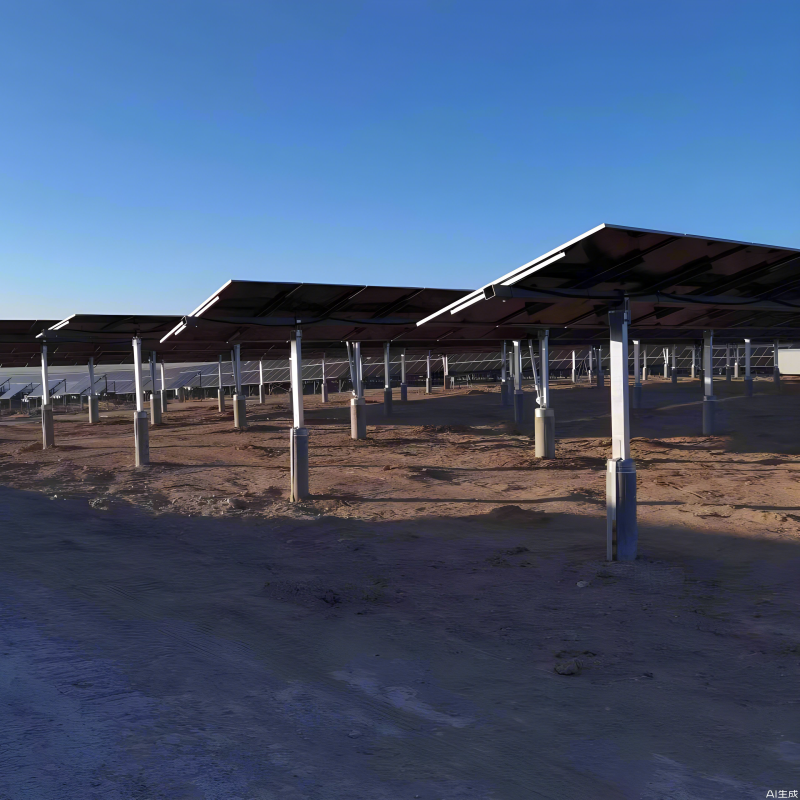

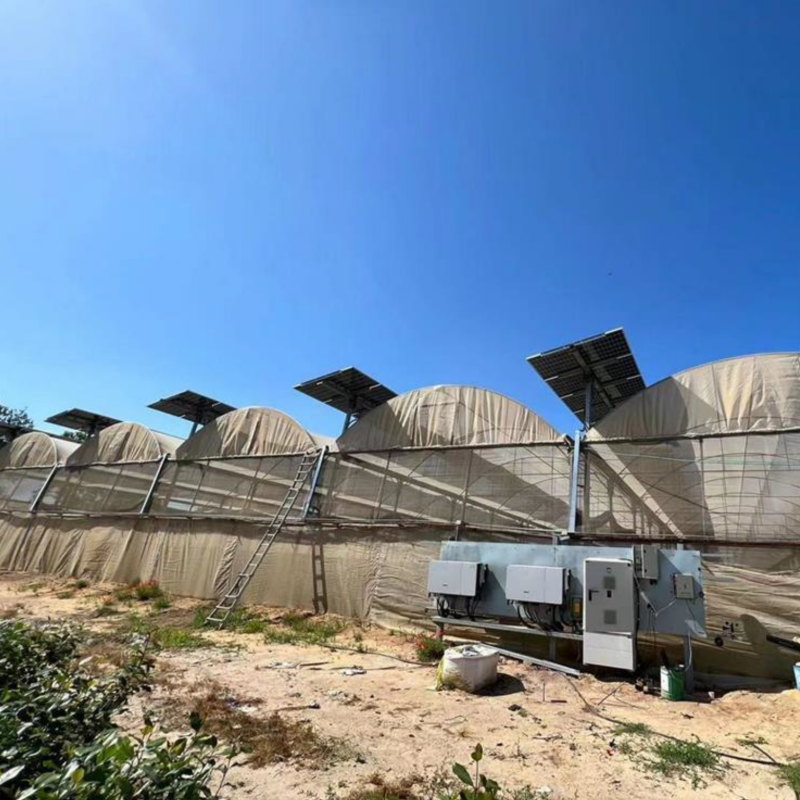

The photovoltaic dual-axis tracking system is a power-generation device designed to continuously orient solar panels toward the sun, ensuring that sunlight strikes the panel surface perpendicularly at all times. Also known as a dual-axis automatic solar tracking mount, this system operates on two rotating axes that move simultaneously, allowing the photovoltaic modules to remain precisely aligned with the sun’s position. This optimized orientation significantly enhances the energy efficiency of solar power stations. The support structure is primarily fabricated from hot-dip galvanized or zinc-aluminum-magnesium materials, with customization available to meet specific client requirements.

• Increases power generation by approximately 30% compared to fixed-tilt systems

• Maintains optimal sunlight incidence throughout the day, maximizing energy capture

• Enhanced durability and safety in adverse weather conditions

• Low maintenance requirements and user-friendly operation

• Dual-axis rotation (pitch axis and horizontal axis) for real-time solar tracking

• Adjusts to a horizontal position during strong winds (e.g., level 8 gale) to improve wind resistance and ensure safety

• Simple and robust structure, facilitating easy installation and maintenance

• Compatible with a wide range of latitudes due to its full rotational capability

The photovoltaic dual-axis tracking system is versatile and suitable for various settings, including:

• Residential courtyards and gardens

• Scenic rest stations and tourist areas

• Urban public facilities and convenience infrastructures

• Green city construction project

• Off-grid or remote locations without access to conventional power grids

By implementing this system, users can effectively meet green energy demands and achieve reliable electricity supply in diverse environments.

The photovoltaic dual-axis tracking system developed by our company is divided into 80㎡ dual-axis, 50㎡ dual-axis, and 30㎡ dual-axis. The parameters are as follows:
